Firmware Updates

Post by Henry »

Periodically we will be releasing new firmware for the GX series, this firmware may fix outstanding issues as well as be adding new features.

This page here will show all the firmware as well as all necessary software required.

http://www.matrixorbital.ca/software/GX/firmware/
Attachments

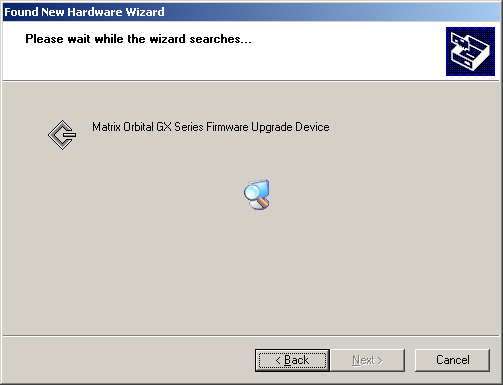

New drivers will install.
New drivers will install.

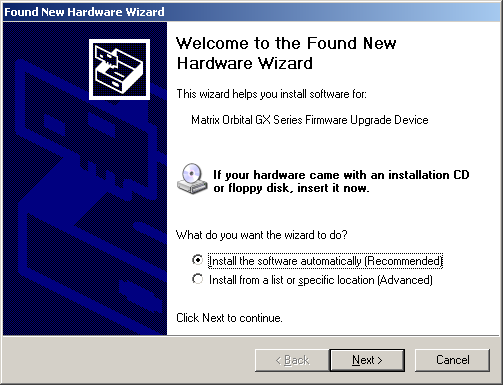

A new Hardware Wizard will pop up and click Next >.
A new Hardware Wizard will pop up and click Next >.

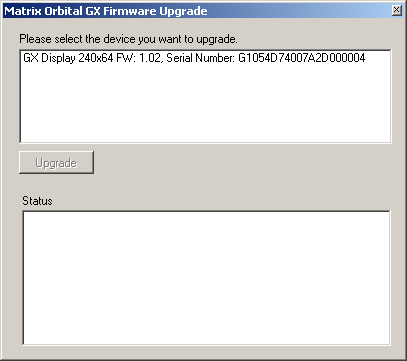

The connected GX displays will show, their size, current firmware and serial number. Click on the one you would like upgraded and then click "Upgrade".
The connected GX displays will show, their size, current firmware and serial number. Click on the one you would like upgraded and then click "Upgrade".
Download and Extract the new Firmware and run the program.
Download and Extract the new Firmware and run the program.

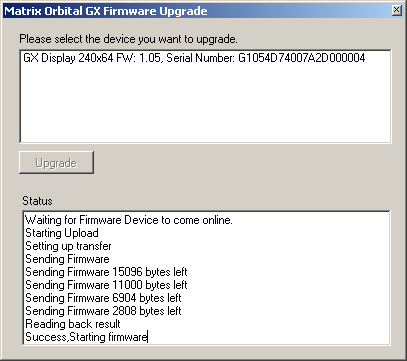

And then the display is upgraded. The last line shows "Success, Starting firmware". This lets us know the upgrade has been successful.
And then the display is upgraded. The last line shows "Success, Starting firmware". This lets us know the upgrade has been successful.

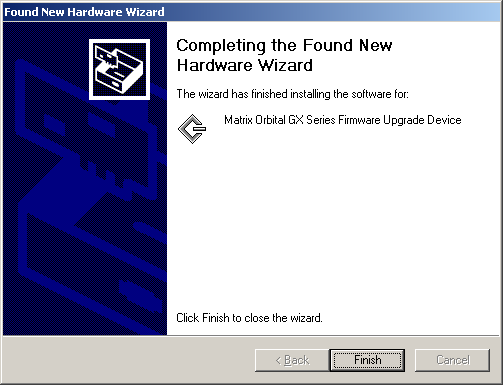

Confirming that the drivers installed correctly.
Confirming that the drivers installed correctly.
Henry J.
President
Matrix Orbital
