Internal Mounting

[Atarien]

Unit: MX204
Software: LCDC (inclued)
Difficulty: So eaaasy ! Everything is in the kit !

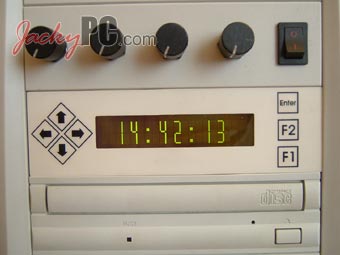

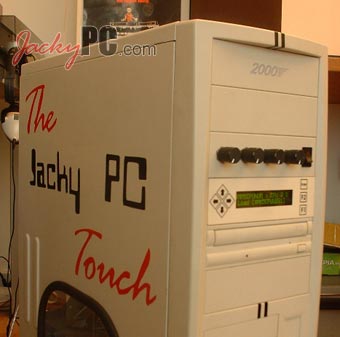

Other: Complete review of MX204 kit : http://www.jackypc.com/index2.php3?rub=articles&num=208 (french)

[speedwolf]

Using MX213
LCDC (included with screen)
MM5
Easy to install and mod thanks to the posts here.

[DemonMaker]

First PC mod Nothing special "apart from the MO lcd"
Watercooled. With my lowest recorded Temp @ 25c
Im after moddin the dvd and cd drive face plates so you can see inside
the unit "plastic case"? if anyone has info on how this could be done,
please let me know.
Same goes for the Zip and floppy drives

[brevduva]

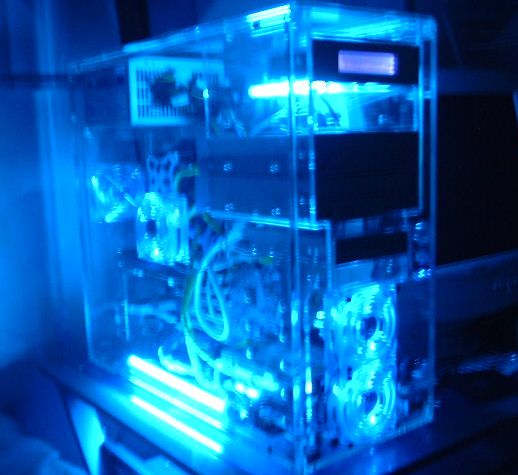

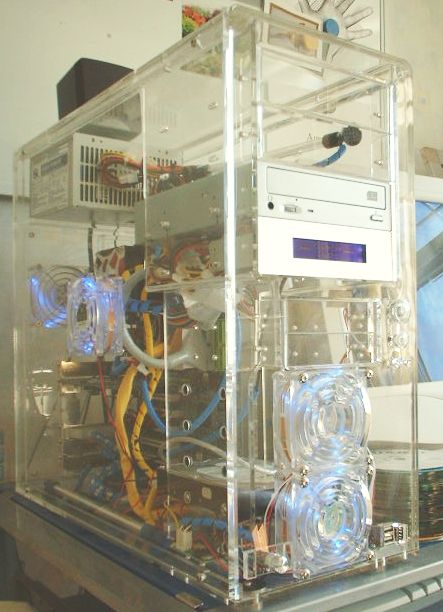

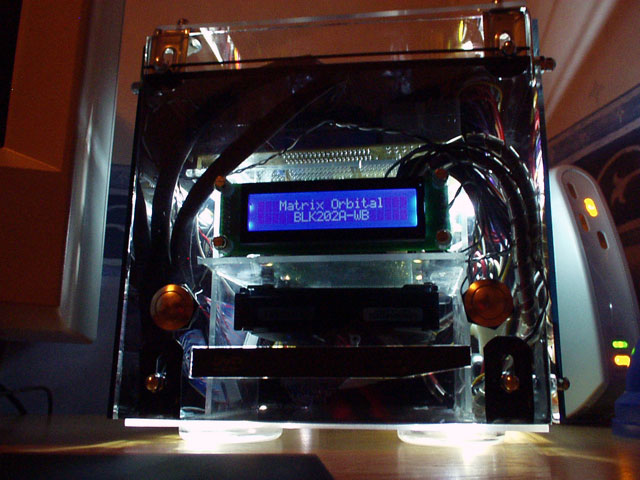

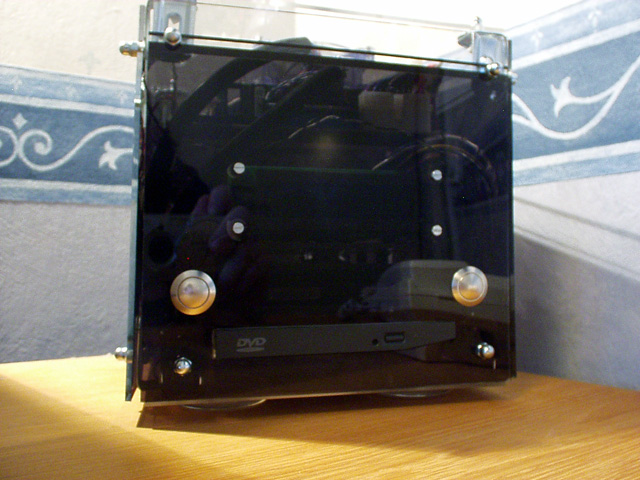

Here is my HTPC that I like to call: The Cube!

Measuring 20x20x20cm.

Specs:
VIA Eden C3-800 mainboard
40Gb Seagate Barracuda IV 7200rpm
2x 256 Mb SDRAM PC133 Spektek cas 2.5
Slimline DVD
Matrix Orbital BLK202A-WB-BK
mATX 250W PCU
Blue Crystal 80 mm LED Fan
2x Titan 40mm fans
Acrylic Laser Cut Grill; Dragon
2x Zalman NB32J

Running Windows XP SP1 and LCDC for the display.

[Spamzor]

will update when i have some nicer lighting

[Funkycheeze]

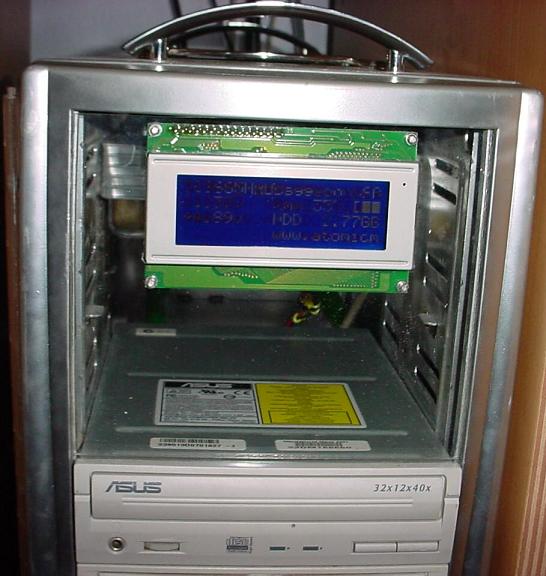

Display: LCD4041
Software: LCDC

i just installed this display in my briefcase computer - the computer is watercooled, and has a NEC LCD1850E built into the lid

a hole was cut for the display itself, holes were then drilled for the mounting screws

after installing the display and using washers to make the front of it flush with the case side, i wired it internally to a serial header on the motherboard, and to the power

i then used some foil tape to finish the edges nicely

here are some pics

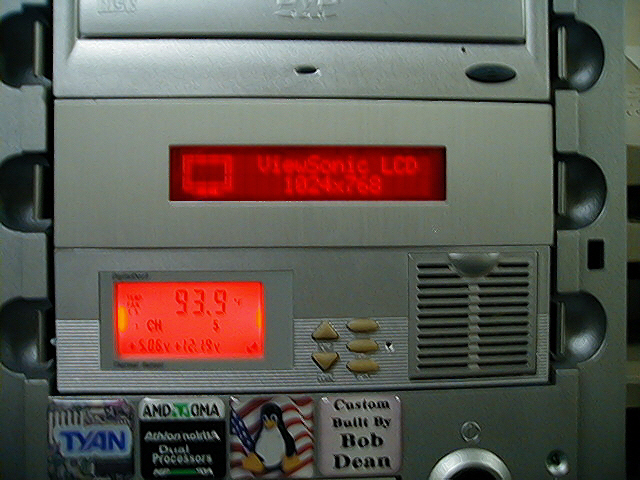

[DrBob147]

Unit: LK-202-24-USB
Case; Chieftec Dragon Aluminum Tower W/ full plexi window in left side door and dual handles on top (front drive bay door removed).
Difficulty: Easy, once I learned how to install, configure and program...thanks to this Forum and the LCDC Forum and especially to Henry & Miles at M.O. and Mat-d-rat at LCDC.

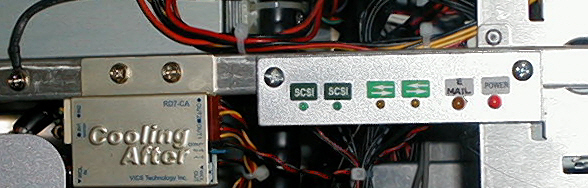

Other: LED panel installed behind side plexi window to indicate SCSI activity; dual LAN activity; e-mail receipt; CPU cooling fans half speed control (for 5 minutes after system shutdown).
System Info: Tyan Thunder MB supporting Dual AMD MP 2400+ CPUs; 1.5 GB ECC RAM; Lite-on CD-RW; Samsung DVD; Digital Dock 5; Iomega Zip 250 (backup for document files); 2-50 GB SCSI HDDs; 4-80 GB HDDs in dual RAID mirror array; Enermax 465W power supply...whew!...got a lot of stuff packed in there. The last thing I will add is some CC lighting inside the case (if I can find a place to put them).
Materials needed: Nothing unusual: 2 pin connectors (salvaged from old computer cases) for the GPOs and LEDs; typical computer screws and other hardware; tie-wraps; soldering supplies.

I don't think it turned out bad for the first project of this magnitude...so you guys (and gals) out there that don't think you can do it...YES YOU CAN! You too can be a first class "MODDER"...especially with the help of first class oeganizations like Matrix Orbital & LCDC...cheers![/img]

[samw5]

Ok guys, here it is... after some minor initial problems with my new LK204-25PC (and the help from Miles that fixed those fried GPOs for me... THANKS), everything in my new case is in place.
Details and more pix can be found on my site at (too long to list everything here):
http://www.samw5.com/Computer/

Sorry for the size, didn't have anything smaller and descent available!

Anyways, hope you guys like it!

Sam

Features:
Full H2O cooling system (XP 2400+@2.28Ghz, Radeon 9700 both H2O cooled), Soyo KT400 board, 1GB of Corsair XMS3500, RAID 0, 52X burner....
LK204-25PC controlling a Sunbeam dual cathode inverter (2 12" blue cathodes), a 6 bright blue LEDs behind the front bezel, and a small email LED next to the LCD. LCDC turns all lights on of off at preset times or at the press of a button on the front panel. Pretty sweet.

[SeRi@lDiE]

Unit: LK202-24 USB
Software: LCDC
Case: Koolance PC2-601BW Case
Difficulty: Easy
Other: These is my first water cooled setup I thought I should give it a special touch...

[NewShockerGuy]

Unit: MX212
Software: LCDC
Case: Lian Li pc65b
Difficulty: Easy
Other: I also added a 5" LCD to the front where my 3 1/2" bays are.





I'll get better pics of it :-)
Thanks,
-Nigel

[drkCrix]

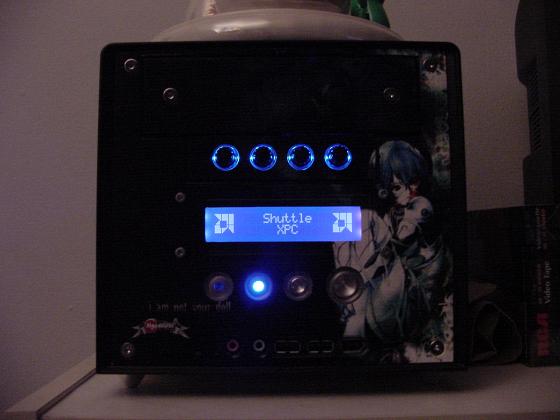

Matrix Orbital MX222
LCDC
Shuttle XPC
Very Tricky

[CMW]

Unit: MX222
Software: LCDC
Case: Beantech BT85
Difficulty: Easy
Other: Will remove unit from silver bezel and mount onto a clear drive bay as soon as I've modded the case drive bays, the bezels are only held in by a single screw so they move around a lot.

This was an earlier picture, the LCD has moved since and the floppy and second CD writer have been removed completly. I haven't got any newer night time pics though

[linear]

Unit: MX212 + indicator + MO Case badge
Software, LCDC of course
Case: Apex supercase, a.k.a. the purple button case
Difficulty: easy as falling out of bed
Other: Check out the backlit badge mod




Extra blab at http://linear1.org/gm/archives/00000165.php

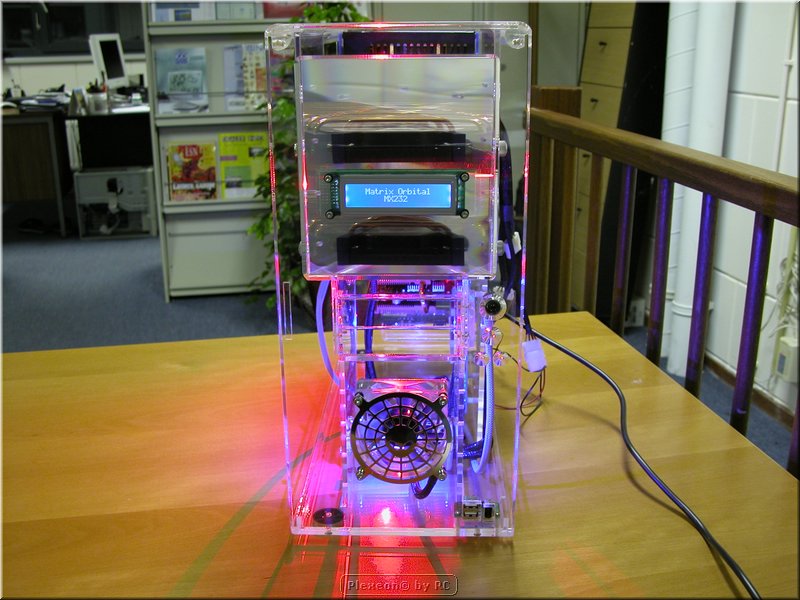

[coorz]

Unit: MX232
Case: Beantech Acrylic
Difficulty: easy
Other: mounted a touch activated power on-circuit on the back of the unit, the sensor is the 3mm led holder in front.

Small gallery at http://www.xs4all.nl/~rccheng
Enjoy,
RC

[CameraReady]

Just received my MX222 this week and have it installed in my Kingwin case.

Unit: MX222
Software: LCDC
Case: Kingwin Aluminum Mid Tower
Difficulty: Easy
Other: Internal USB cable

Notes: The 5.25" drive bays in this case don't allow you to use the standard mounting screws. I may modify one of the drive bay covers to mount the display so that I can get it firmly attached.
