Henry
OMNIPRESENT
Joined: 14 Aug 2001
Posts: 2757
|
Here are going to be pictures of internal Lian Li and Stealth Mod mountings of Displays...
The reason why this is here is because there are SO many requests...
Rules:
1. No asking how it was done in this thread, take it to general, or hardware or PM.
2. Please keep the pictures less then 500 pixels (width) in size.
3. Give some information on how it was done.
4. If you need web hosting, please e-mail me and I'll host your pictures.
5. Dead links will be deleted.
6. If you have a homepage with more pictures or details, please give it at the bottom.
Format:
-------
Unit:
BLK202A-4BR
Case:
Standard Mid Tower
Difficulty:
Easy
Other:
I added LEDs to the bottom using the GPOs.
PIC 1
PIC 2
Materials Needed:
(list where and so on to help other modders )
ETC...
_________________
Henry J.
Technical Support
Matrix Orbital
[ This Message was edited by: Henry on 2002-07-10 10:05 ]
[ This Message was edited by: Henry on 2002-07-31 22:34 ]
|
Mon May 06, 2002 11:08 am |
|
|
AW3K
LCD!
Joined: 20 Apr 2002
Posts: 14
Location: Wakefield, West Yorkshire, UK |
|
 |
|

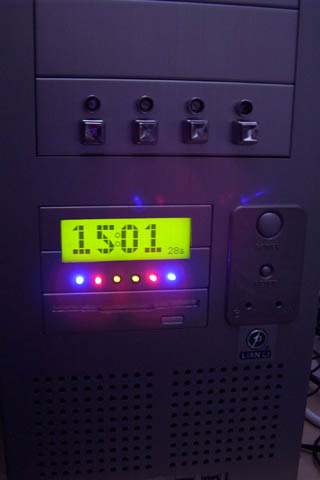

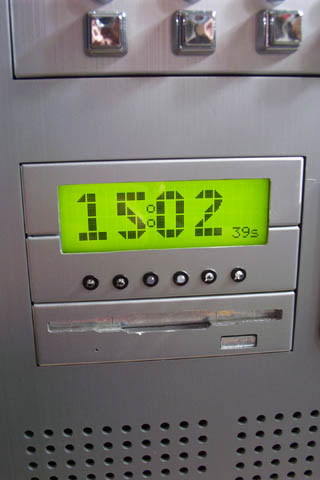

Unit:
Lk204-v
Case:
Lian-li PC60USB
Difficulty:
Hard
Other:
It takes real guts to cut up a lian-li case but somehow i managed to.
Measure twice cut once!, i measured that many times i forgot.

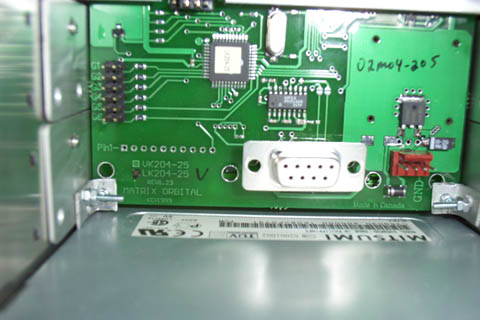

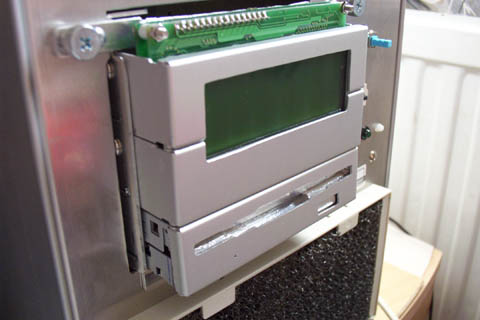

To make the LCD fit you have to cut the floppy disk drive rack in two places
1. the lip that goes across the rack.
2. where the jumpers are on the back of the LCD.
*
Just added:
*
The 6 LED's for the GPO's as i thought that the front was lacking something.
The LED's had to be glued into the bezels as the space is limited, the sligtest movement or push on the front of the case and the LED's would have been pushed through.
This is an un replacable part of the case, so don't go wrong.
NOTE:
This only just fits in two Lian-Li 3.5" faceplates.
Materials Needed:
Nerves of steel
steady hands
2x Lian-Li Face Plates
A Dremal with cutting disks and grinding wheel
A 1mm Drill bit and pin vice
A set of needle files
A Hot melt glue gun or super-glue
6x Coloured 3mm LED's
6x 3mm LED bezels
various connections from a old case for the connections of the GPO's.
Homepage:
AW3K HOME
More pictures and details on my Web Site, Have a look, go on
| Description: |
|
| Filesize: |
18.77 KB |
| Viewed: |
19037 Time(s) |
![10_gpo_dark[1].jpg](files/10_gpo_dark_1__950.jpg)
|
| Description: |
|
| Filesize: |
24.57 KB |
| Viewed: |
19021 Time(s) |
![09_gpo_light[1].jpg](files/09_gpo_light_1__719.jpg)
|
| Description: |
|
| Filesize: |
18.7 KB |
| Viewed: |
19012 Time(s) |
![08_front_face[1].jpg](files/08_front_face_1__310.jpg)
|
| Description: |
|
| Filesize: |
27.28 KB |
| Viewed: |
19009 Time(s) |
![07_front_cage_bare[1].jpg](files/07_front_cage_bare_1__656.jpg)
|
| Description: |
|
| Filesize: |
34.6 KB |
| Viewed: |
19025 Time(s) |
![04_pcb_back[1].jpg](files/04_pcb_back_1__656.jpg)
|
Last edited by AW3K on Wed Nov 20, 2002 1:48 pm; edited 2 times in total |
|
Mon May 06, 2002 12:52 pm |
|
|
gb57666
LCD!
Joined: 24 Apr 2002
Posts: 17
Location: N.Y. USA |

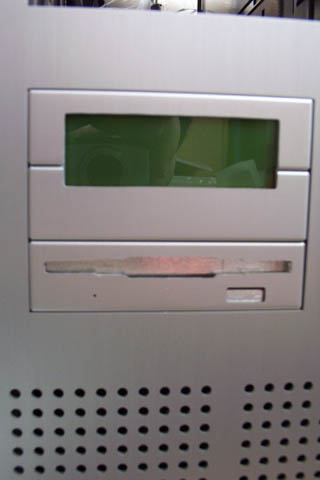

Unit: BLC2021
Case: Lian-Li PC60
Difficulty: Easy
Other: I added - 2 blue leds for email notification.
1 red led for a heat alarm.
2 red leds inside the case that flash when Winamp is played.
Inverted Display.
Materials needed: Lian-Li Face Plate
Dremmel & cutting wheels
Nibbler
Drill and bit
Files
Paper and pencil
First I trimmed around the insert with the dremmel (the thickness of a faceplate).
Then I traced the window opening in the bay insert and copied it to the faceplate.
Then I drilled a hole in the center of the plate and nibbled the opening.
Finally, I nibbled off the faceplate "wings?" and filed the opening.
Now just slide it on!
_________________
MO LK202-25
<font size=-1>[ This Message was edited by: gb57666 on 2002-05-07 15:08 ]</font>
Last edited by gb57666 on Mon Mar 10, 2003 2:51 pm; edited 1 time in total |
|
Mon May 06, 2002 2:09 pm |
|
|
CyPher
LCD Guru
Joined: 30 Nov 2001
Posts: 85
|
|
|
|

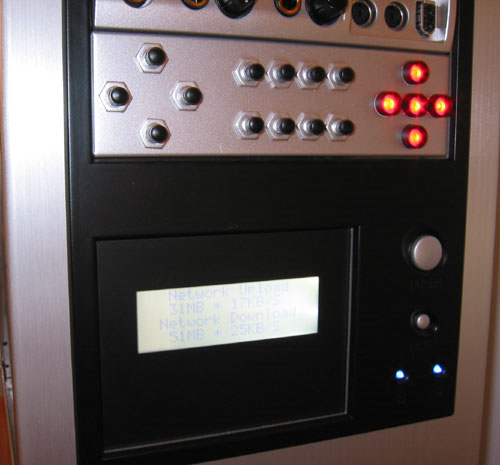

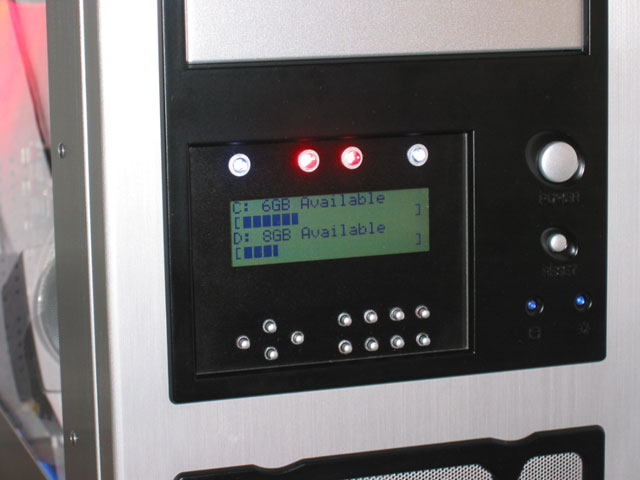

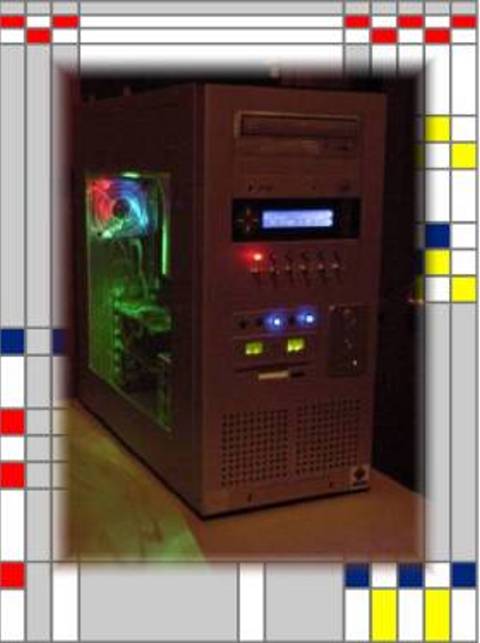

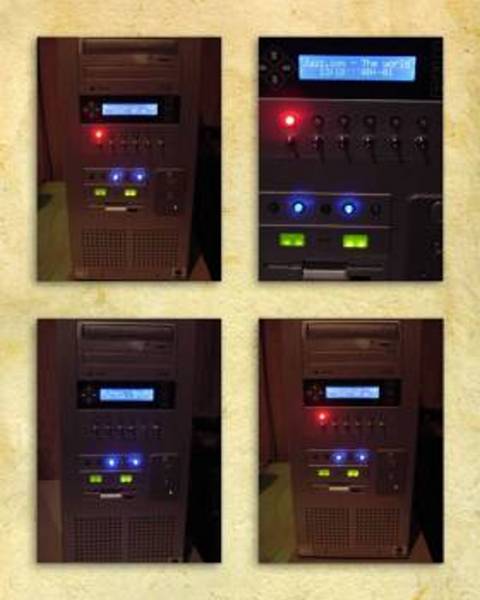

Unit:
LK204-25PC Limited edition
Case:
Lian-Li PC68 (modded of course)
Difficulty:
lcd mount-easy, control panel-harder
Other:

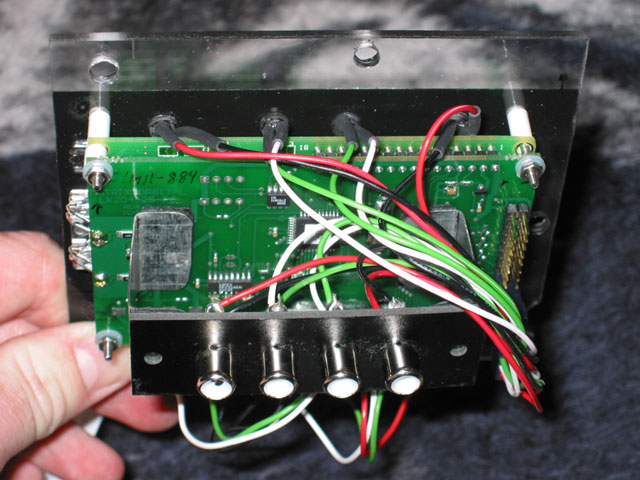

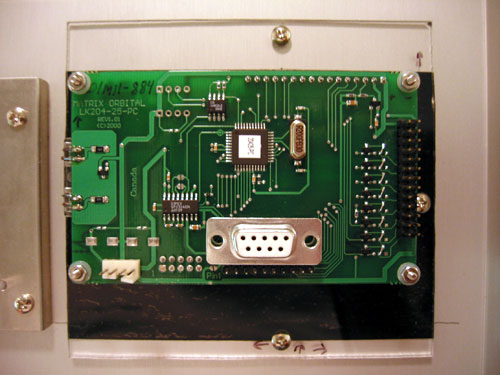

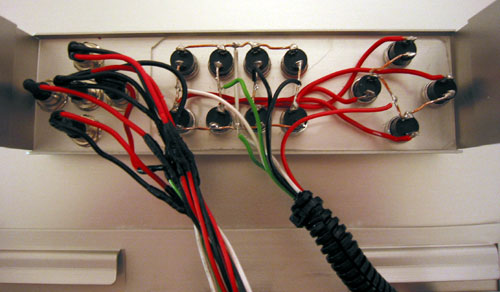

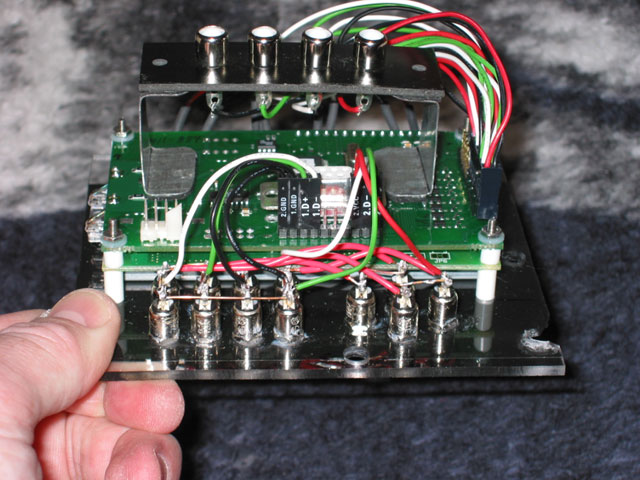

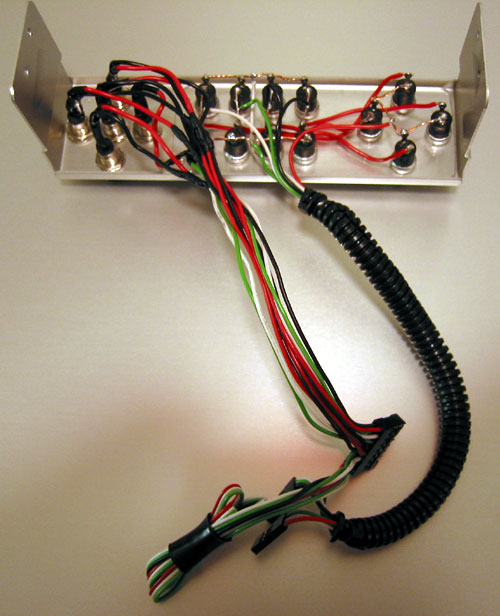

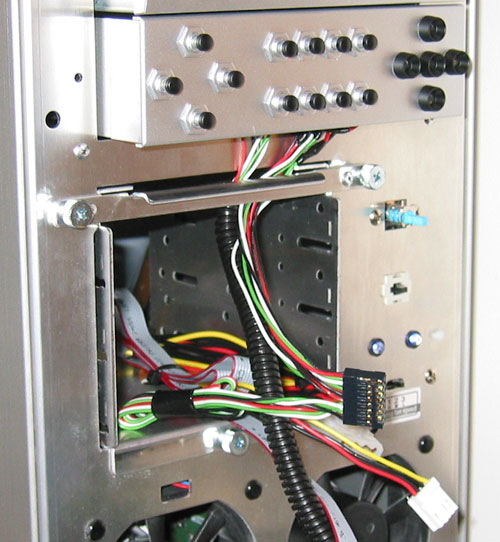

Custom 12 key/5 LED control panel...running LCDC (is there anything else), first group of keys control winamp, middle group/top row reserved for gpo control, bottom row for other misc functions in LCDC (backlight on/off, momentary screen for weather, check mail, etc....)
for the leds, i have the center flashing for new mail, bottom strobing for a temp warning, and the other 3 designated for fan status.
here are a few pics. I have an article posted here http://www.blagged-hardware.net/content/articles/orbital-control.html detailing the construction of the control center, the lcd it's self is mounted on a piece of plexy glass that is the same thickness as the lian-li spacers, and attached by 3 of the screws holding the front bezzel plastic on.
edit: forgot to mention that i used the usb kit from the lian-li, that i wasent using anyway, so make the keypad and gpo connectors...
new pics..i just shortined, rounded, and nylon meshed my serial cable leading to the lcd...seen here with my audigy ribbon cable done the same way. here are a few pics from the upcoming article
enjoy.....some real nice mods here guys
| Description: |
|
| Filesize: |
33.48 KB |
| Viewed: |
19016 Time(s) |
|
| Description: |
|
| Filesize: |
64.7 KB |
| Viewed: |
19005 Time(s) |
|
| Description: |
|
| Filesize: |
70.71 KB |
| Viewed: |
19013 Time(s) |
|
| Description: |
|
| Filesize: |
45.63 KB |
| Viewed: |
19006 Time(s) |
|
| Description: |
|
| Filesize: |
60.33 KB |
| Viewed: |
19003 Time(s) |
|
| Description: |
|
| Filesize: |
35.81 KB |
| Viewed: |
19013 Time(s) |
|
| Description: |
|
| Filesize: |
71.38 KB |
| Viewed: |
19008 Time(s) |
|
| Description: |
|
| Filesize: |
18.12 KB |
| Viewed: |
19025 Time(s) |
|
| Description: |
|
| Filesize: |
88.71 KB |
| Viewed: |
19006 Time(s) |
|
|
|
Mon May 06, 2002 7:30 pm |
|
|
Mr.Stuart
LCD?
Joined: 06 Jun 2002
Posts: 1
|

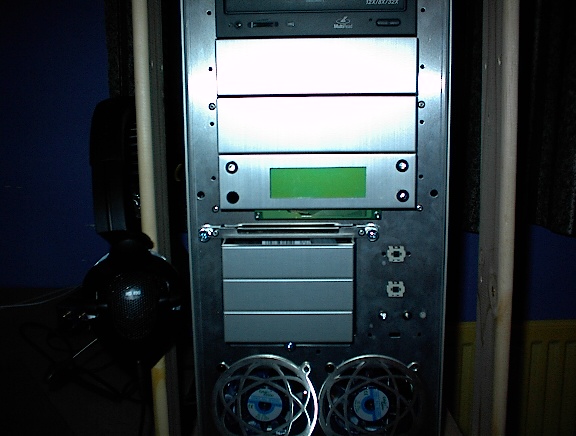

Unit:
NK204-V
Case:
Lian-li PC7
Difficulty:
Medium
Other:
Who says a 4x20 LCD cant go in one drivebay
4 GPO's - ultrabright blue LED's
Materials needed:
LED clips
ultrabright LED's
Heatshirnk
Solder
Random wires
Tools:
Dremel
Files
Soldering Iron
Email me if you would like any help
| Description: |
|
| Filesize: |
90.03 KB |
| Viewed: |
19018 Time(s) |
|
| Description: |
|
| Filesize: |
95.03 KB |
| Viewed: |
19019 Time(s) |
|
_________________
MSN: purplerazor@hotmail.com
EMAIL: mr.stuart:ntlworld.com
o_0 |
|
Fri Jun 07, 2002 2:27 pm |
|
|
GreatOldOne
LCD Geek
Joined: 12 May 2002
Posts: 26
Location: Northampton, UK |

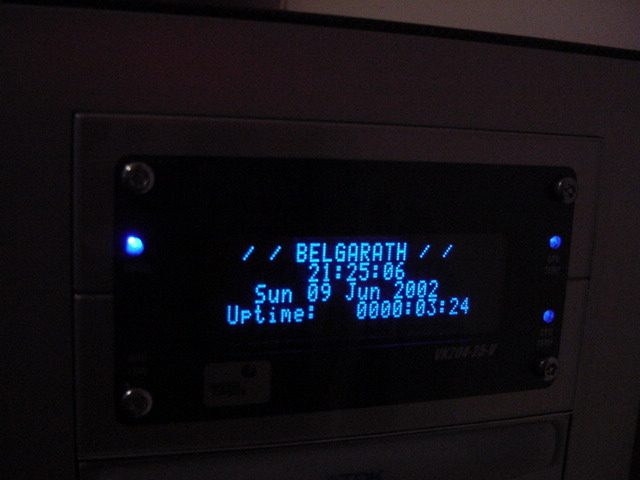

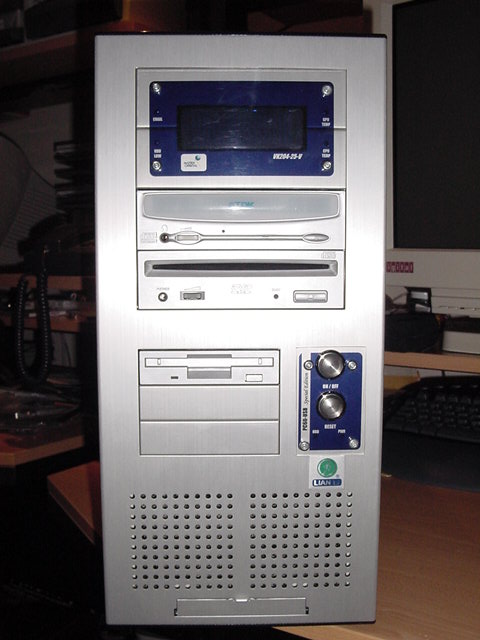

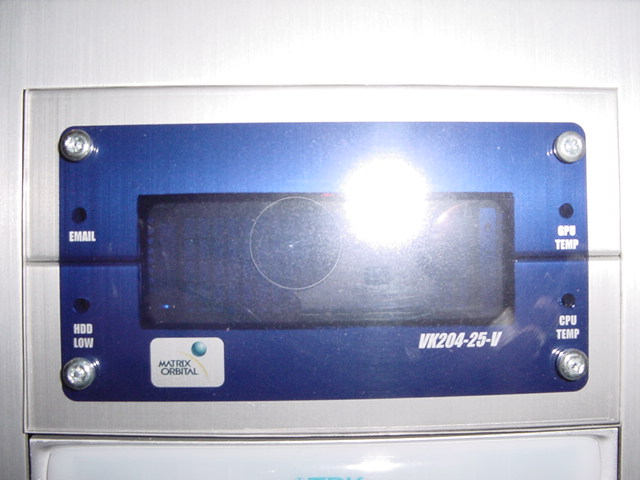

Unit: VK204-25-V
Case: Lian-li PC60USB
Difficulty: Hard
Other:4 hibright blue led's added to GPO's
Running LCDC, of course....
The display is mounted across two 5.25" bay covers in a similar way to AW3K's.
I put a plastic bezel and decals on the VFD - Hope you dont mind me using the MO logo, Henry!
The decal idea I pinched from BitTech's Macroman. I used Inkjet OHP films, as it was going to be under the perspex. The text and backgrounds for logos etc. was left white in PowerPoint (Hey, It was the only thing I had to hand... :rolleyes:), so that it would be clear when printed out. This gives the text a brushed aluminum look when the decal is in place.
More details here: http://www.bit-tech.net/article/89/
Materials needed:
4 x ultrabright blue LED's
Heatshink
Solder
Assorted wires donated from old cases with MB 'header plugs' intact
4 x Torx bolts (M4 X20)
Perspex sheet
Inkjet OHP transparencies
Tools:
Dremel
Files
Soldering Iron
Inkjet printer
| Description: |
|
| Filesize: |
57.64 KB |
| Viewed: |
19020 Time(s) |
![fullfrontal[1].jpg](files/fullfrontal_1__194.jpg)
|
| Description: |
|
| Filesize: |
60.44 KB |
| Viewed: |
19008 Time(s) |
![page1[1].jpg](files/page1_1__117.jpg)
|
| Description: |
|
| Filesize: |
60.26 KB |
| Viewed: |
19019 Time(s) |
![vfd[1].jpg](files/vfd_1__190.jpg)
|
_________________
GreatOldOne - Corporate IT Wage Slave
"Bloody hell. Sodding. Blimey. Shagging. Knickers. Bollocks. Oh God, I'm English!"
|
|
Sun Jun 09, 2002 1:27 pm |
|
|
Macro
Bit-Tech.net
Joined: 20 Nov 2001
Posts: 13
|
Here's one
Unit:

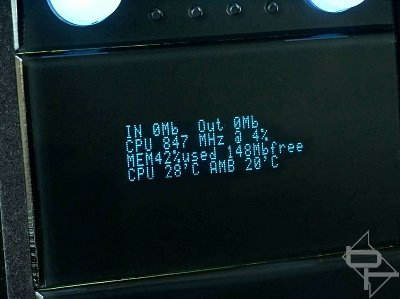

VK204-25-V
Case:
Plastic box
Difficulty:
Piece of cake
Other:
http://www.bit-tech.net/article/63/
| Description: |
|
| Filesize: |
45.14 KB |
| Viewed: |
19009 Time(s) |
|
| Description: |
|
| Filesize: |
9.97 KB |
| Viewed: |
19004 Time(s) |
|
| Description: |
|
| Filesize: |
12.97 KB |
| Viewed: |
19007 Time(s) |
|
_________________
Macro |
|
Mon Jun 17, 2002 10:10 am |
|
|
CyPher
LCD Guru
Joined: 30 Nov 2001
Posts: 85
|

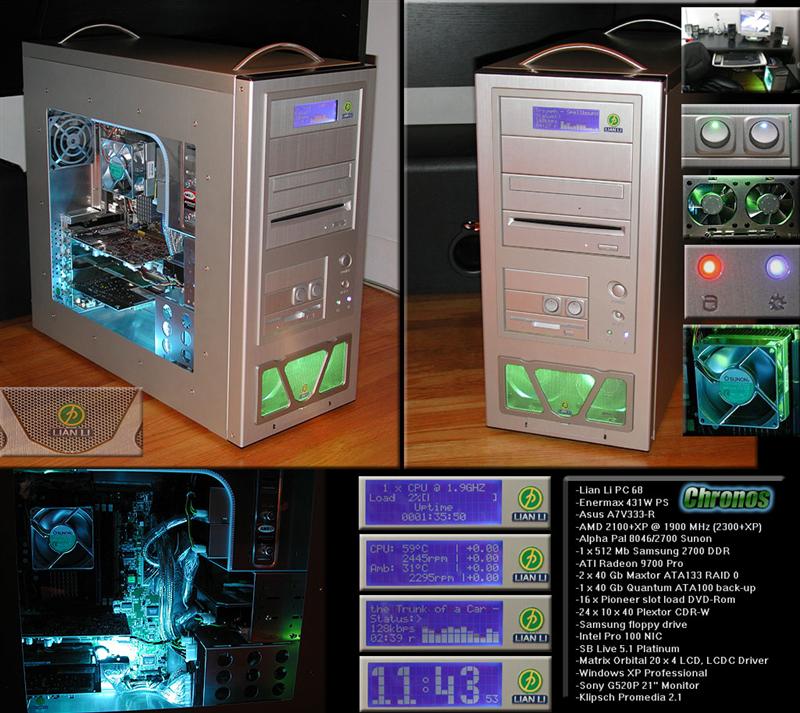

Everything in computers eventually get's smaller and smaller...so i decided to redo the Orbital Control Center to make it smaller...essentialy placing the lights and switches around the lcd its self, while incorporating a 4 port buss for fans and mods...
its running the registered version of LCDC of course...right now, i have the blue leds flashing, and the red leds strobeing when i get mail...looks like police lights....here is a small video to kind of see the effect (digital cam is only 15 fps and does not get all the red strobes)
http://www.jgwp.com/ocsrev2/system_night.WMV
| Description: |
|
| Filesize: |
80.99 KB |
| Viewed: |
19007 Time(s) |
|
| Description: |
|
| Filesize: |
76.34 KB |
| Viewed: |
19011 Time(s) |
|
| Description: |
|
| Filesize: |
77.85 KB |
| Viewed: |
19001 Time(s) |
|
| Description: |
|
| Filesize: |
84.65 KB |
| Viewed: |
19025 Time(s) |
|
| Description: |
|
| Filesize: |
40.52 KB |
| Viewed: |
19007 Time(s) |
|
| Description: |
|
| Filesize: |
19.79 KB |
| Viewed: |
19012 Time(s) |
|
| Description: |
|
| Filesize: |
61.48 KB |
| Viewed: |
19008 Time(s) |
|
|
|
Mon Jul 08, 2002 1:09 pm |
|
|
gb57666
LCD!
Joined: 24 Apr 2002
Posts: 17
Location: N.Y. USA |
Unit:
LK204-25-PC
Software:
LCDC!!!
Case:
Lian Li
Here is a quick preview of my new LK204-25PC.
I will post more pics when its completed (leds, keypad and CCFL's).
Now inverted:
Last edited by gb57666 on Mon Mar 10, 2003 2:46 pm; edited 1 time in total |
|
Fri Jul 19, 2002 4:07 pm |
|
|
juju
LCD Geek
Joined: 30 Aug 2002
Posts: 21
Location: Nv |
Unit:
BLK202A-WB-4BR-BK
Case:
Lian-Li PC60 USB
Difficulty:
Easy
Other:
Win XP, Pen4/2.0
Added LED for E-Mail and Winamp in
3.5 Bay. Also A Lian-Li 3.5 T-3,
Side Window with Laser LED's
(inside lights) Green,Red,Blue, Cover CD-RW with Lian-Li Silver Stick-on and Painted the DVD Silver. Added a 6 Port BayBus to control the inside lights currently only using 3 switches.
| Description: |
|
| Filesize: |
31.59 KB |
| Viewed: |
19011 Time(s) |
|
| Description: |
|
| Filesize: |
35.3 KB |
| Viewed: |
19004 Time(s) |
|
| Description: |
|
| Filesize: |
33.19 KB |
| Viewed: |
19008 Time(s) |
|
_________________
JuJu Still Learning |
|
Mon Sep 16, 2002 10:18 pm |
|
|
skritch
LCD?
Joined: 04 Oct 2002
Posts: 1
|

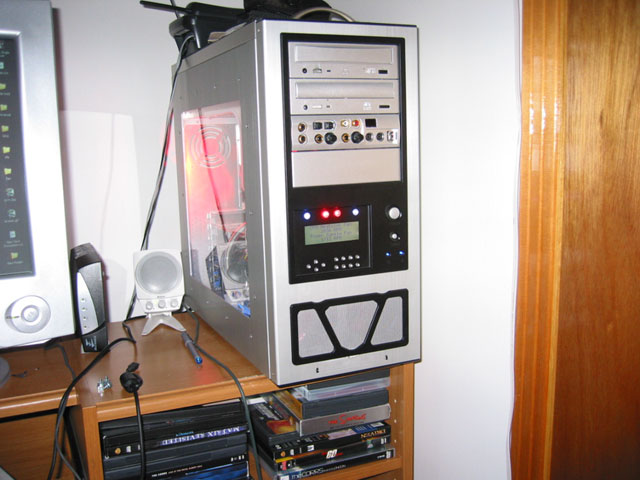

Unit:
LK204-25PC
Case:
LianLi PC75
Difficulty:
Easy
Other:
Sorry about the quality of the images...I'm not the world's best photographer. The system's an Innovatek-cooled 2.8GHz P4 on a Gigabyte 8IHXP with 512MB of PC1066 RAM (for now; I'm waiting for an RMA for my defective 1GB of PC1066 from Kingston). The tubing on the watercooling's been upgraded to 3/8" from the stock 1/4" ID. And there are 7 UV CCFLs in the case.
The mods aren't complete yet, but I promised Henry I'd post a few pictures. Here ya go, Henry!
| Description: |
|
| Filesize: |
100.33 KB |
| Viewed: |
18996 Time(s) |
|
| Description: |
|
| Filesize: |
117.7 KB |
| Viewed: |
19009 Time(s) |
|
|
|
Wed Oct 09, 2002 8:17 pm |
|
|
gordy_hand
LCD Guru
Joined: 16 Aug 2001
Posts: 60
|

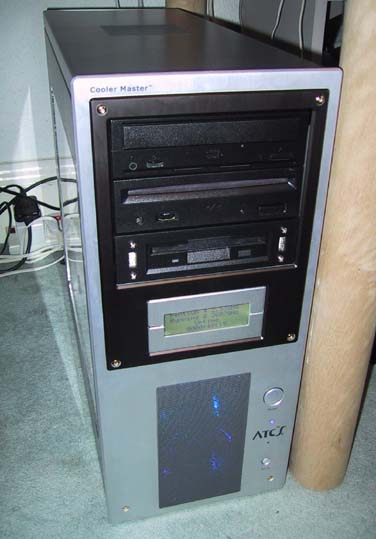

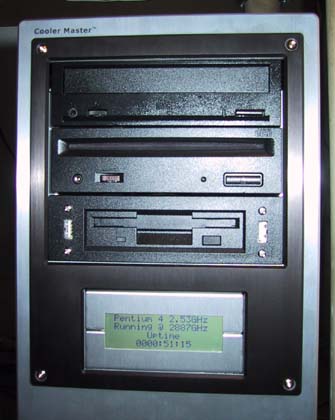

Unit:
LK202-25-WB-V
Case:
Coolermaster ATCS 110
Difficulty:
Easy
| Description: |
|
| Filesize: |
18.55 KB |
| Viewed: |
19013 Time(s) |
![projectsilentmaster-55a[1].jpg](files/projectsilentmaster-55a_1__154.jpg)
|
| Description: |
|
| Filesize: |
10.22 KB |
| Viewed: |
18997 Time(s) |
![projectsilentmaster-47a[1].jpg](files/projectsilentmaster-47a_1__121.jpg)
|
| Description: |
|
| Filesize: |
8.5 KB |
| Viewed: |
19001 Time(s) |
![projectsilentmaster-02a[1].jpg](files/projectsilentmaster-02a_1__988.jpg)
|
_________________
Gordy_Hand |
|
Thu Oct 17, 2002 8:57 am |
|
|
simkna
LCD?
Joined: 28 Oct 2002
Posts: 1
Location: Leicester |
| My new CM200. |
|
|
Unit:
LK204-25-PC
Software:
LCDC
Case:
Cool Master 200
I have just finished building my new CM 200 with MO LK204-25-PC installed into 2x3.5" bay.
Si.
| Description: |
|
| Filesize: |
33.55 KB |
| Viewed: |
19013 Time(s) |
|
| Description: |
|
| Filesize: |
29.85 KB |
| Viewed: |
18996 Time(s) |
|
|
|
Mon Oct 28, 2002 1:39 am |
|
|
ViperZ
LCD?
Joined: 30 Oct 2002
Posts: 4
|

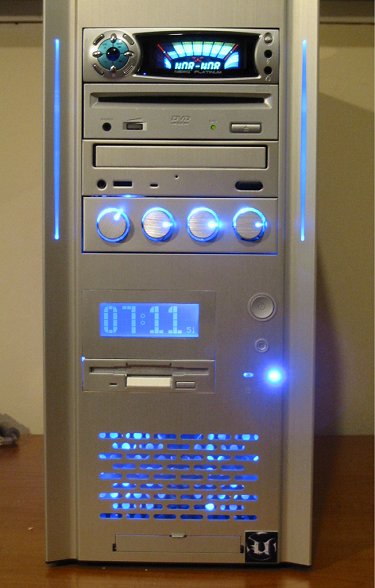

| Adding to the Gallery |
|
|
Unit:
LK204-25-WB-V
Software:
LCDC!
Case:
Lian Li PC-68 Mid Tower
Difficulty:
Easy
| Description: |
|
| Filesize: |
106.19 KB |
| Viewed: |
19004 Time(s) |
|
|
|
Wed Oct 30, 2002 3:42 pm |
|
|
Dash
LCD?
Joined: 02 Nov 2002
Posts: 1
|

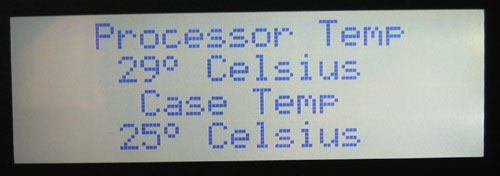

| Double 3.5 internal mounting |
|
|
Unit:
LK204-25-WB-V
Case:
Lian Li PC6083A
Difficulty:
Easy
Other:
Brushed Alu front was taken from spare that was cut from the side of my case window
Materials Needed:
Side brushed alu taken from where the window was cut, nibbler and sandpaper
| Description: |
|
| Filesize: |
25.69 KB |
| Viewed: |
8766 Time(s) |
|
| Description: |
|
| Filesize: |
41.52 KB |
| Viewed: |
8766 Time(s) |
|
_________________
http://www.thevisions.com/comp/
Last edited by Dash on Sun Dec 08, 2002 2:21 pm; edited 1 time in total |
|
Sun Nov 03, 2002 7:58 pm |
|
|
â

|
|
Goto page 1, 2 Next
All times are GMT - 8 Hours. The time now is Tue Sep 07, 2010 5:37 am
|
|
|
|
| |
SmartFeed
