The majority of our LK/VK/PK units come with the available option of a voltage regulator that will allow you to supply the unit with between +9 to +15V, instead of just the standard 5V.
If you have a unit on your hands, and you are supplying 5V to it and you get only blocks showing up, like '5V to -V.JPG', or you are simply wondering wether it might be a -V. Flip the display over and check it because it if you find a voltage regulator, then you know you have a -V display and you must ensure that you supply it with +9 to +15V. However, unfortunatly if you supply 12V to a non -V display, you will fry the chip.
--
Jon
-V - What does a voltage regulator look like?
-
Jon
- Matrix Orbital
- Posts: 231
- Joined: Mon Oct 24, 2005 10:38 am
- Location: Calgary, AB, Canada
- Contact:
-V - What does a voltage regulator look like?
- Attachments
-

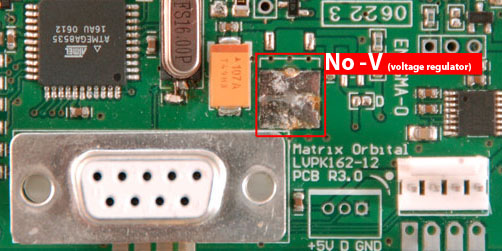

- No -V option, this means no voltage regulator
- LVPK16212.jpg (71.41 KiB) Viewed 10940 times
-

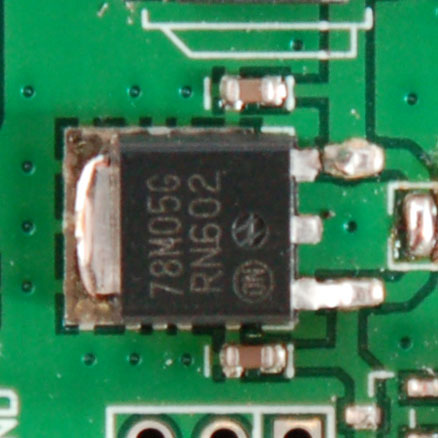

- LK202-25 Voltage regulator
- -V.jpg (39.36 KiB) Viewed 10958 times
-

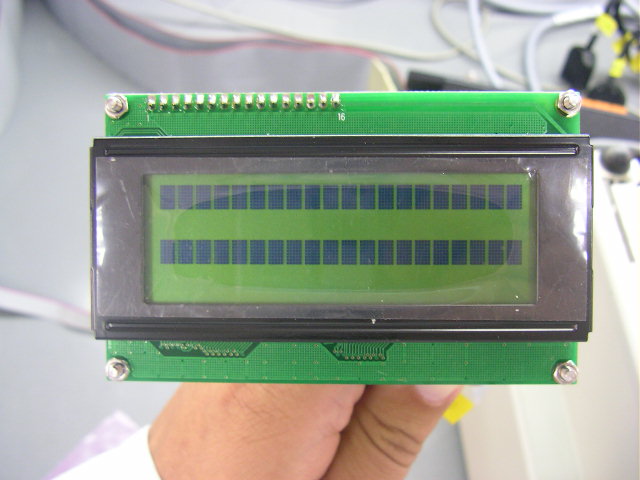

- A picture of a LK204-25-V, when supplied with only 5V.
- 5V to -V.JPG (65.24 KiB) Viewed 10958 times
