Lian Li, Coolmaster and Stealth Mods!

A Gallery of pictures...

Moderators: Henry, Mods

Henry
OMNIPRESENT
OMNIPRESENT
Posts: 2834
Joined: Tue Aug 14, 2001 6:00 pm
Contact:

Post by Henry » Mon May 06, 2002 1:08 pm

Here are going to be pictures of internal Lian Li and Stealth Mod mountings of Displays...

The reason why this is here is because there are SO many requests...

Rules:

1. No asking how it was done in this thread, take it to general, or hardware or PM.
2. Please keep the pictures less then 500 pixels (width) in size.
3. Give some information on how it was done.
4. If you need web hosting, please e-mail me and I'll host your pictures.
5. Dead links will be deleted.
6. If you have a homepage with more pictures or details, please give it at the bottom.

Format:
-------

Unit: BLK202A-4BR
Case: Standard Mid Tower
Difficulty: Easy
Other: I added LEDs to the bottom using the GPOs.

PIC 1

PIC 2


Materials Needed: (list where and so on to help other modders )

ETC...


_________________
Henry J.
Technical Support
Matrix Orbital

<font size=-1>[ This Message was edited by: Henry on 2002-07-10 10:05 ]</font>

<font size=-1>[ This Message was edited by: Henry on 2002-07-31 22:34 ]</font>

AW3K
LCD!
Posts: 14
Joined: Sat Apr 20, 2002 6:00 pm
Location: Wakefield, West Yorkshire, UK

Post by AW3K » Mon May 06, 2002 2:52 pm

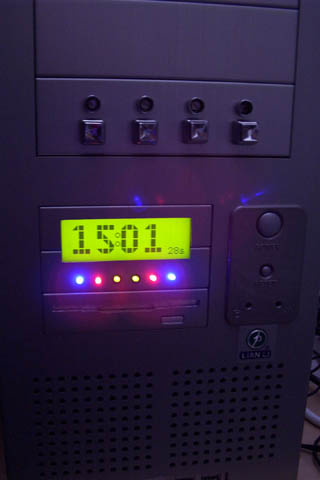

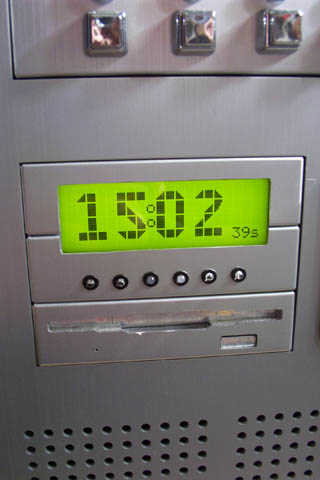

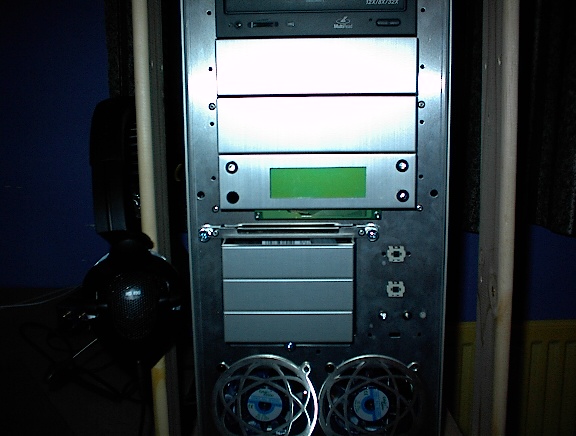

Unit: Lk204-v
Case: Lian-li PC60USB
Difficulty: Hard
Other: It takes real guts to cut up a lian-li case but somehow i managed to.
Measure twice cut once!, i measured that many times i forgot.

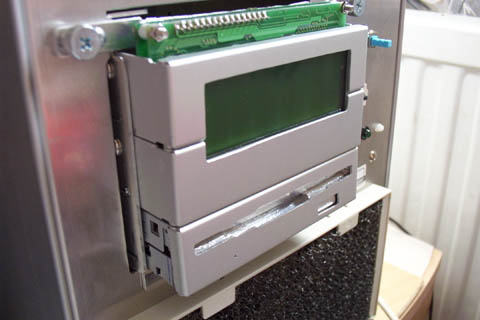

To make the LCD fit you have to cut the floppy disk drive rack in two places
1. the lip that goes across the rack.
2. where the jumpers are on the back of the LCD.

*Just added:*

The 6 LED's for the GPO's as i thought that the front was lacking something.

The LED's had to be glued into the bezels as the space is limited, the sligtest movement or push on the front of the case and the LED's would have been pushed through.
This is an un replacable part of the case, so don't go wrong.

NOTE: This only just fits in two Lian-Li 3.5" faceplates.


Materials Needed:

Nerves of steel
steady hands
2x Lian-Li Face Plates
A Dremal with cutting disks and grinding wheel
A 1mm Drill bit and pin vice
A set of needle files
A Hot melt glue gun or super-glue
6x Coloured 3mm LED's
6x 3mm LED bezels
various connections from a old case for the connections of the GPO's.

Homepage: AW3K HOME
More pictures and details on my Web Site, Have a look, go on :smile:
Attachments
Last edited by AW3K on Wed Nov 20, 2002 2:48 pm, edited 2 times in total.

gb57666
LCD!
Posts: 17
Joined: Wed Apr 24, 2002 6:00 pm
Location: N.Y. USA

Post by gb57666 » Mon May 06, 2002 4:09 pm

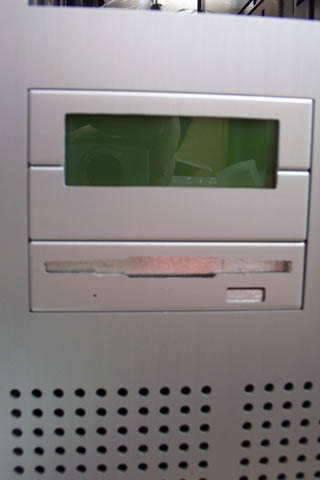

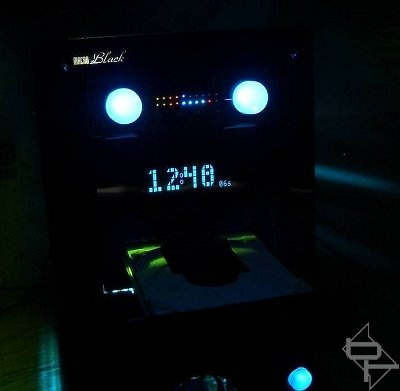

Unit: BLC2021
Case: Lian-Li PC60
Difficulty: Easy
Other: I added - 2 blue leds for email notification.
1 red led for a heat alarm.
2 red leds inside the case that flash when Winamp is played.

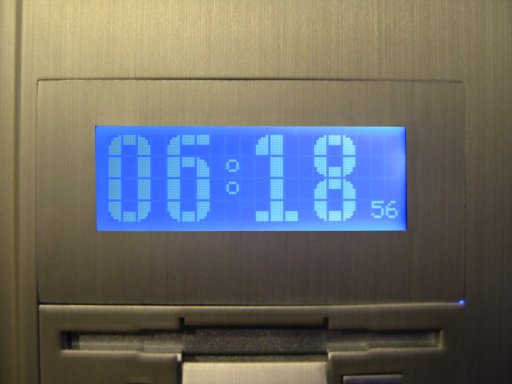

Inverted Display.


Materials needed: Lian-Li Face Plate
Dremmel & cutting wheels
Nibbler
Drill and bit
Files
Paper and pencil
First I trimmed around the insert with the dremmel (the thickness of a faceplate).
Then I traced the window opening in the bay insert and copied it to the faceplate.
Then I drilled a hole in the center of the plate and nibbled the opening.
Finally, I nibbled off the faceplate "wings?" and filed the opening.
Now just slide it on!

_________________
MO LK202-25

<font size=-1>[ This Message was edited by: gb57666 on 2002-05-07 15:08 ]</font>
Last edited by gb57666 on Mon Mar 10, 2003 3:51 pm, edited 1 time in total.

CyPher
LCD Guru
Posts: 85
Joined: Fri Nov 30, 2001 4:00 pm
Contact:

Post by CyPher » Mon May 06, 2002 9:30 pm

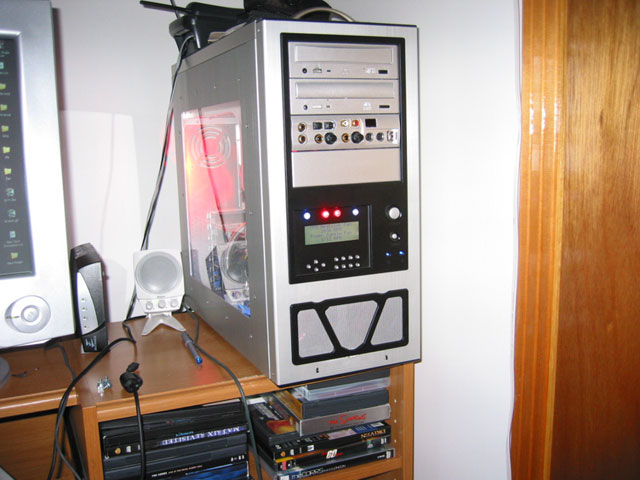

Unit: LK204-25PC Limited edition
Case: Lian-Li PC68 (modded of course)
Difficulty: lcd mount-easy, control panel-harder

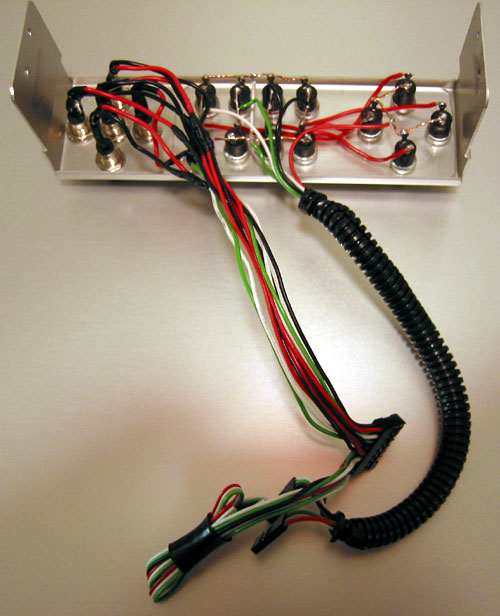

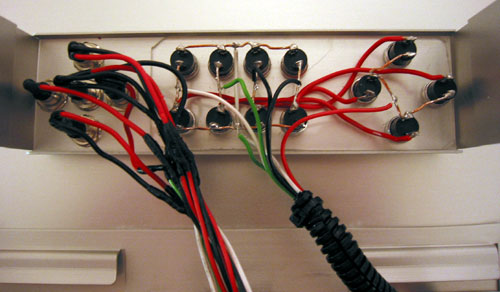

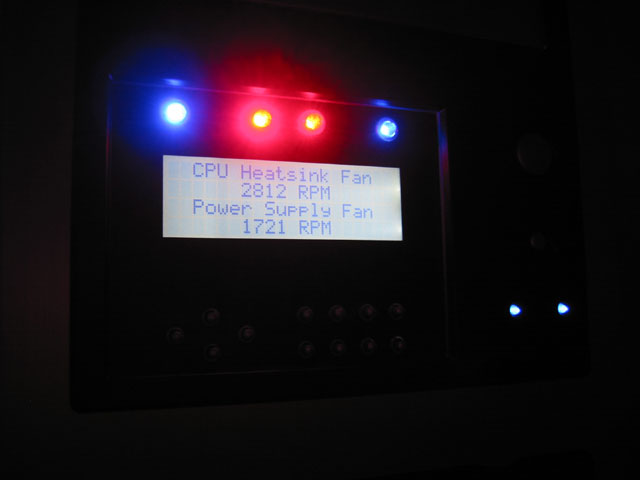

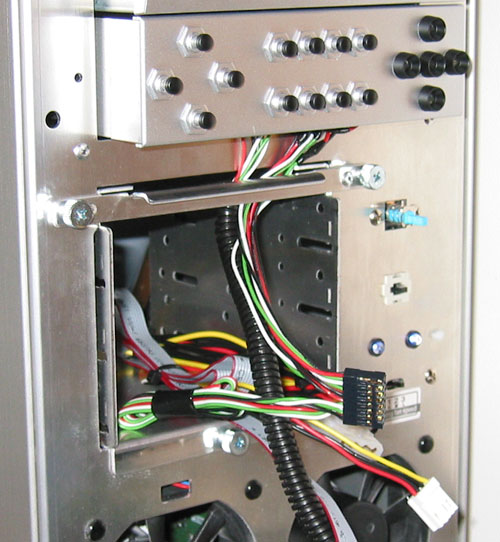

Other: Custom 12 key/5 LED control panel...running LCDC (is there anything else), first group of keys control winamp, middle group/top row reserved for gpo control, bottom row for other misc functions in LCDC (backlight on/off, momentary screen for weather, check mail, etc....)

for the leds, i have the center flashing for new mail, bottom strobing for a temp warning, and the other 3 designated for fan status.

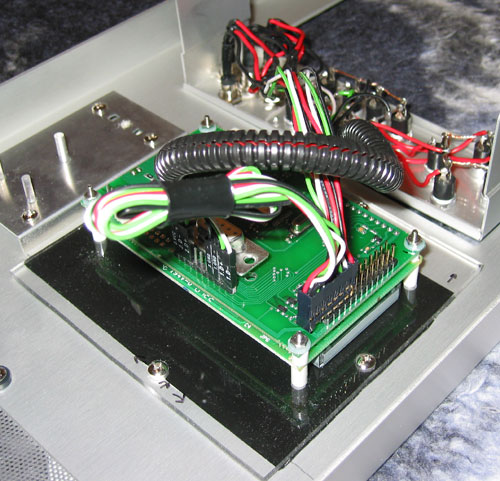

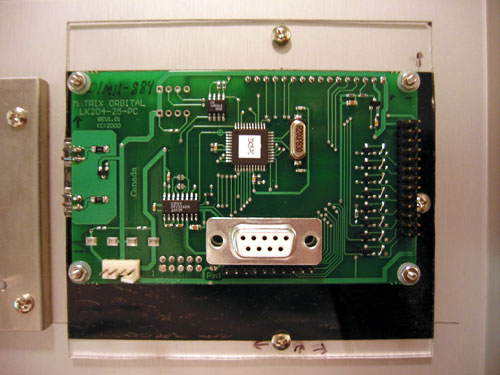

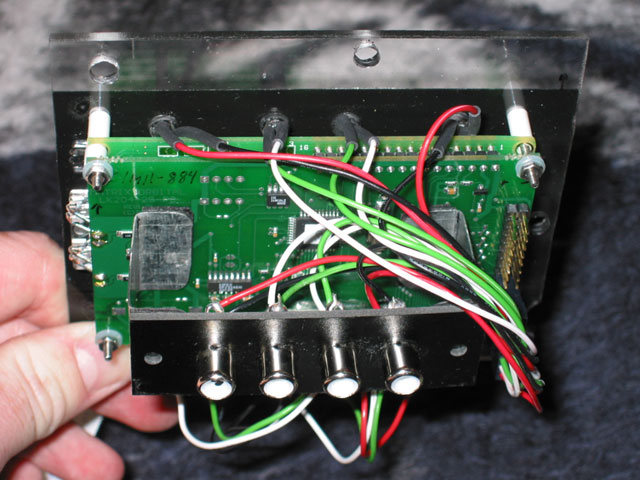

here are a few pics. I have an article posted here http://www.blagged-hardware.net/content ... ntrol.html detailing the construction of the control center, the lcd it's self is mounted on a piece of plexy glass that is the same thickness as the lian-li spacers, and attached by 3 of the screws holding the front bezzel plastic on.

edit: forgot to mention that i used the usb kit from the lian-li, that i wasent using anyway, so make the keypad and gpo connectors...

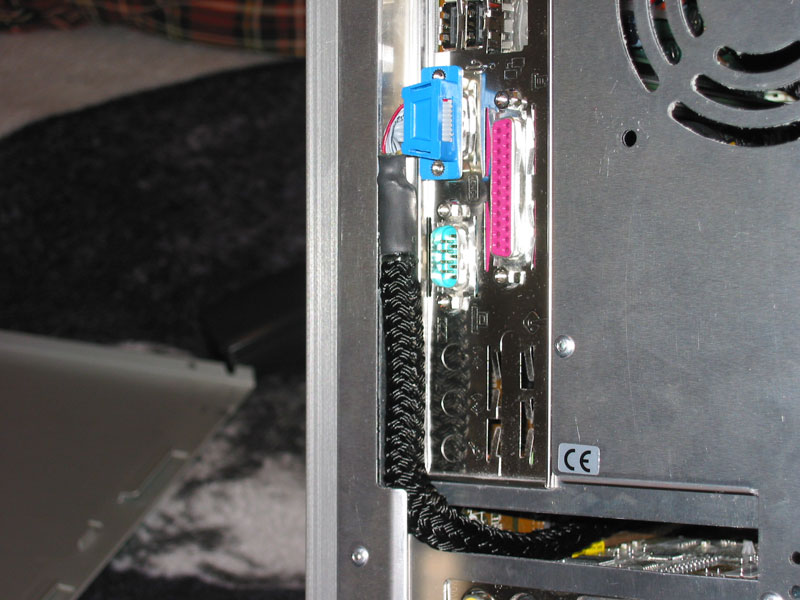

new pics..i just shortined, rounded, and nylon meshed my serial cable leading to the lcd...seen here with my audigy ribbon cable done the same way. here are a few pics from the upcoming article

enjoy.....some real nice mods here guys
Attachments

Mr.Stuart
LCD?
Posts: 1
Joined: Thu Jun 06, 2002 6:00 pm

Post by Mr.Stuart » Fri Jun 07, 2002 4:27 pm

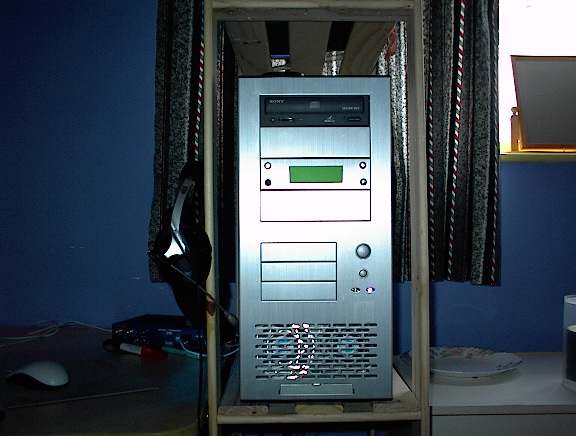

Unit: NK204-V
Case: Lian-li PC7
Difficulty: Medium
Other: Who says a 4x20 LCD cant go in one drivebay :razz:

4 GPO's - ultrabright blue LED's :smile:

Materials needed:

LED clips
ultrabright LED's
Heatshirnk
Solder
Random wires

Tools:

Dremel
Files
Soldering Iron

Email me if you would like any help :smile:
Attachments
MSN: purplerazor@hotmail.com
EMAIL: mr.stuart:ntlworld.com

o_0

GreatOldOne
LCD Geek
Posts: 26
Joined: Sun May 12, 2002 6:00 pm
Location: Northampton, UK
Contact:

Post by GreatOldOne » Sun Jun 09, 2002 3:27 pm

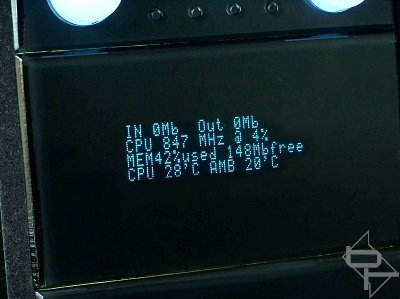

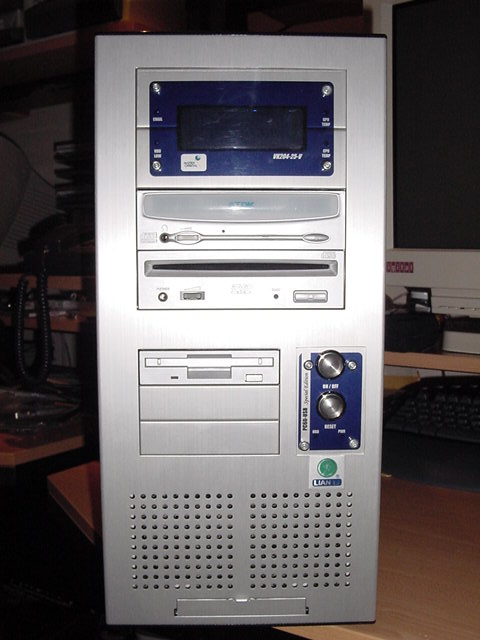

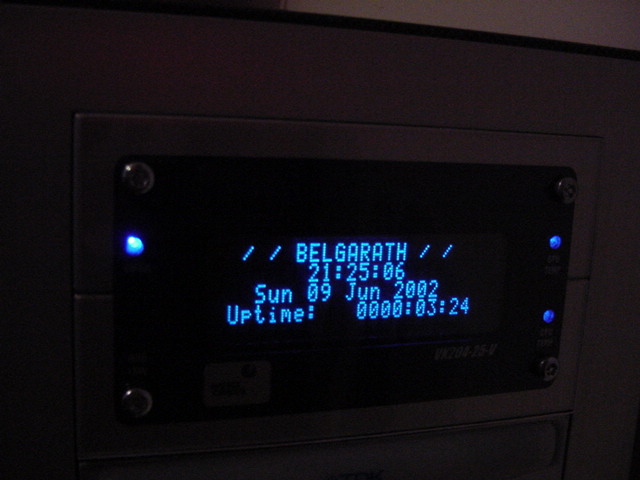

Unit: VK204-25-V
Case: Lian-li PC60USB
Difficulty: Hard
Other:4 hibright blue led's added to GPO's

Running LCDC, of course....

The display is mounted across two 5.25" bay covers in a similar way to AW3K's.

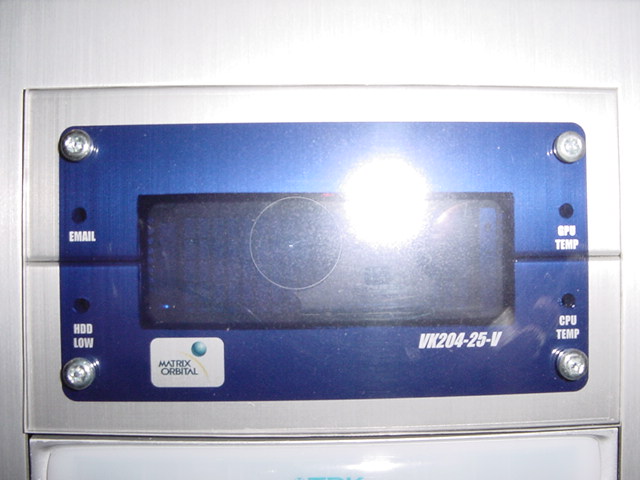

I put a plastic bezel and decals on the VFD - Hope you dont mind me using the MO logo, Henry! :grin:

The decal idea I pinched from BitTech's Macroman. I used Inkjet OHP films, as it was going to be under the perspex. The text and backgrounds for logos etc. was left white in PowerPoint (Hey, It was the only thing I had to hand... :rolleyes:), so that it would be clear when printed out. This gives the text a brushed aluminum look when the decal is in place.

More details here: http://www.bit-tech.net/article/89/

Materials needed:

4 x ultrabright blue LED's
Heatshink
Solder
Assorted wires donated from old cases with MB 'header plugs' intact
4 x Torx bolts (M4 X20)
Perspex sheet
Inkjet OHP transparencies

Tools:

Dremel
Files
Soldering Iron
Inkjet printer
Attachments

GreatOldOne - Corporate IT Wage Slave
"Bloody hell. Sodding. Blimey. Shagging. Knickers. Bollocks. Oh God, I'm English!"

Macro
Bit-Tech.net
Bit-Tech.net
Posts: 13
Joined: Tue Nov 20, 2001 4:00 pm
Contact:

Post by Macro » Mon Jun 17, 2002 12:10 pm

Here's one
Unit: VK204-25-V
Case: Plastic box
Difficulty: Piece of cake
Other: http://www.bit-tech.net/article/63/
Attachments
Macro

CyPher
LCD Guru
Posts: 85
Joined: Fri Nov 30, 2001 4:00 pm
Contact:

Post by CyPher » Mon Jul 08, 2002 3:09 pm

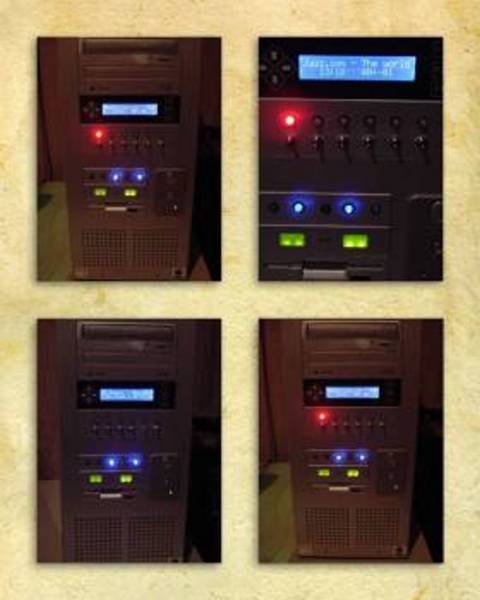

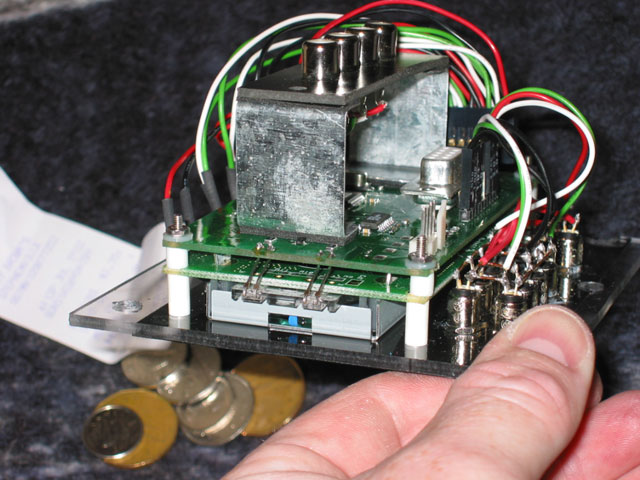

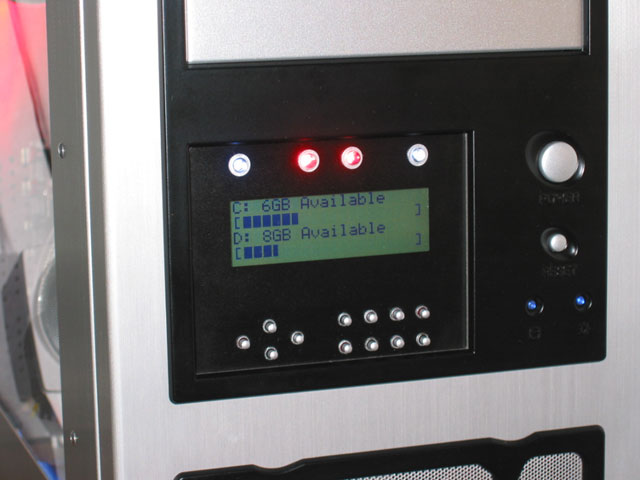

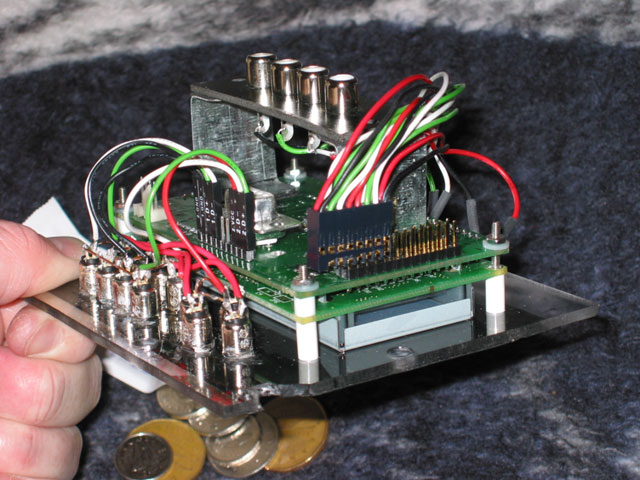

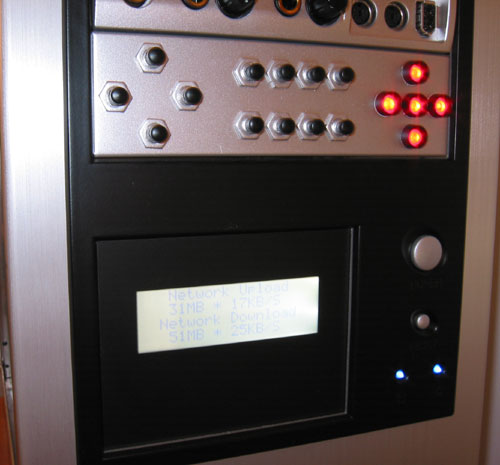

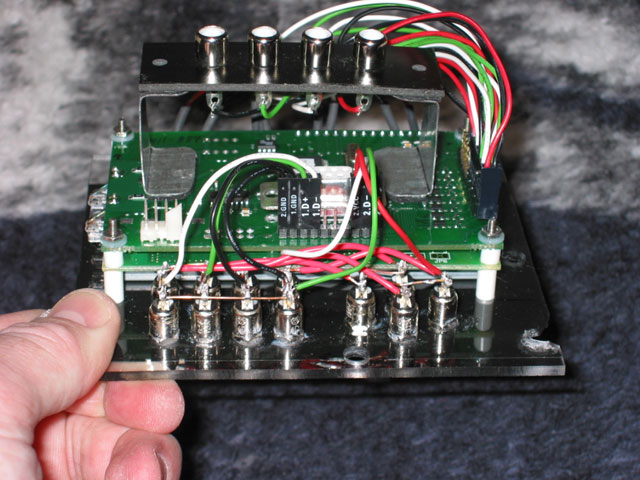

Everything in computers eventually get's smaller and smaller...so i decided to redo the Orbital Control Center to make it smaller...essentialy placing the lights and switches around the lcd its self, while incorporating a 4 port buss for fans and mods...

its running the registered version of LCDC of course...right now, i have the blue leds flashing, and the red leds strobeing when i get mail...looks like police lights....here is a small video to kind of see the effect (digital cam is only 15 fps and does not get all the red strobes)
http://www.jgwp.com/ocsrev2/system_night.WMV
Attachments

gb57666
LCD!
Posts: 17
Joined: Wed Apr 24, 2002 6:00 pm
Location: N.Y. USA

Post by gb57666 » Fri Jul 19, 2002 6:07 pm

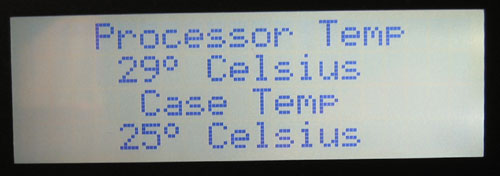

Unit: LK204-25-PC
Software: LCDC!!!
Case: Lian Li

Here is a quick preview of my new LK204-25PC.
I will post more pics when its completed (leds, keypad and CCFL's).


Now inverted:
Last edited by gb57666 on Mon Mar 10, 2003 3:46 pm, edited 1 time in total.

juju
LCD Geek
Posts: 21
Joined: Fri Aug 30, 2002 6:00 pm
Location: Nv

Post by juju » Tue Sep 17, 2002 12:18 am

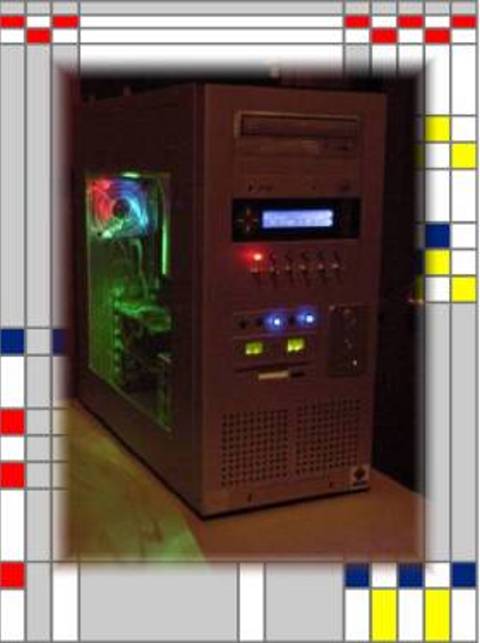

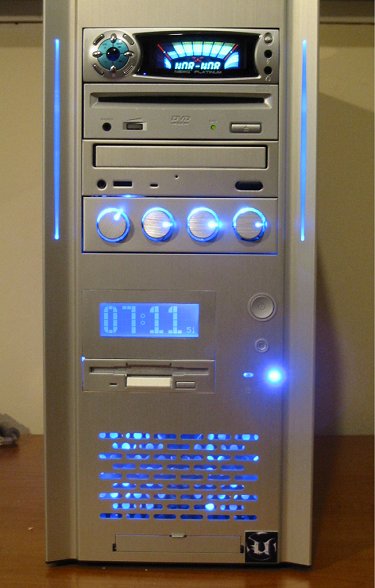

Unit: BLK202A-WB-4BR-BK
Case: Lian-Li PC60 USB
Difficulty: Easy
Other: Win XP, Pen4/2.0
Added LED for E-Mail and Winamp in
3.5 Bay. Also A Lian-Li 3.5 T-3,
Side Window with Laser LED's
(inside lights) Green,Red,Blue, Cover CD-RW with Lian-Li Silver Stick-on and Painted the DVD Silver. Added a 6 Port BayBus to control the inside lights currently only using 3 switches.
Attachments
JuJu Still Learning

skritch
LCD?
Posts: 1
Joined: Fri Oct 04, 2002 2:51 pm
Contact:

Post by skritch » Wed Oct 09, 2002 10:17 pm

Unit: LK204-25PC
Case: LianLi PC75
Difficulty: Easy

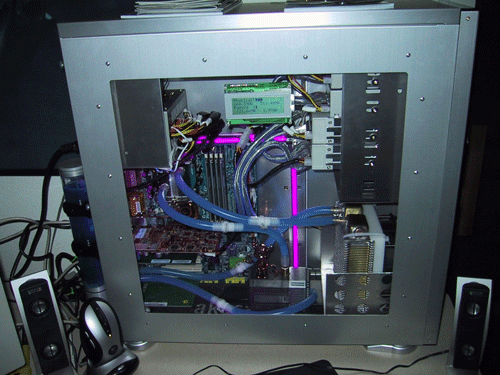

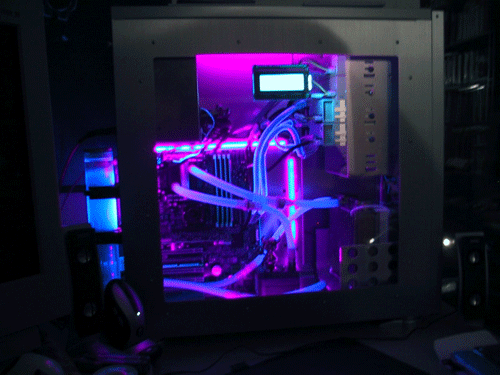

Other: Sorry about the quality of the images...I'm not the world's best photographer. The system's an Innovatek-cooled 2.8GHz P4 on a Gigabyte 8IHXP with 512MB of PC1066 RAM (for now; I'm waiting for an RMA for my defective 1GB of PC1066 from Kingston). The tubing on the watercooling's been upgraded to 3/8" from the stock 1/4" ID. And there are 7 UV CCFLs in the case.

The mods aren't complete yet, but I promised Henry I'd post a few pictures. Here ya go, Henry!
Attachments

gordy_hand
LCD Guru
Posts: 60
Joined: Thu Aug 16, 2001 6:00 pm
Contact:

Post by gordy_hand » Thu Oct 17, 2002 10:57 am

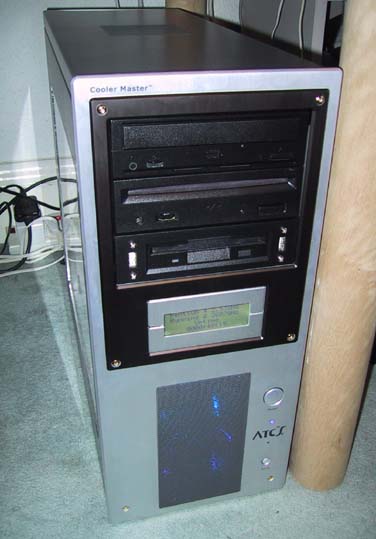

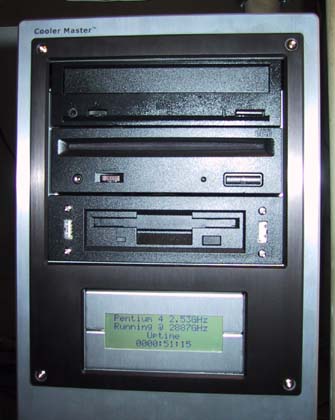

Unit: LK202-25-WB-V
Case: Coolermaster ATCS 110
Difficulty: Easy
Attachments
Gordy_Hand

simkna
LCD?
Posts: 1
Joined: Mon Oct 28, 2002 1:46 am
Location: Leicester

My new CM200.

Post by simkna » Mon Oct 28, 2002 2:39 am

Unit: LK204-25-PC
Software: LCDC
Case: Cool Master 200

I have just finished building my new CM 200 with MO LK204-25-PC installed into 2x3.5" bay.

Si.
Attachments

ViperZ
LCD?
Posts: 4
Joined: Wed Oct 30, 2002 4:34 pm
Contact:

Adding to the Gallery

Post by ViperZ » Wed Oct 30, 2002 4:42 pm

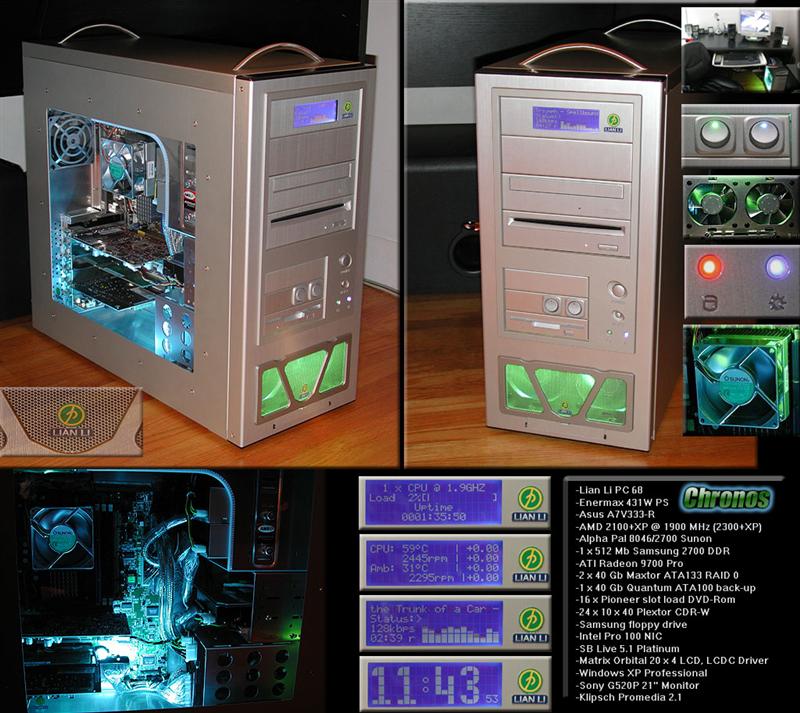

Unit: LK204-25-WB-V
Software: LCDC!
Case: Lian Li PC-68 Mid Tower
Difficulty: Easy
Attachments

Dash
LCD?
Posts: 1
Joined: Sat Nov 02, 2002 11:04 pm
Contact:

Double 3.5 internal mounting

Post by Dash » Sun Nov 03, 2002 8:58 pm

Unit: LK204-25-WB-V
Case: Lian Li PC6083A
Difficulty: Easy
Other: Brushed Alu front was taken from spare that was cut from the side of my case window

Materials Needed: Side brushed alu taken from where the window was cut, nibbler and sandpaper
Attachments
Last edited by Dash on Sun Dec 08, 2002 3:21 pm, edited 1 time in total.
